Industrial-grade Isolated 8-ch RS485 Hub Rail-mount Support Wide Baud rate Range

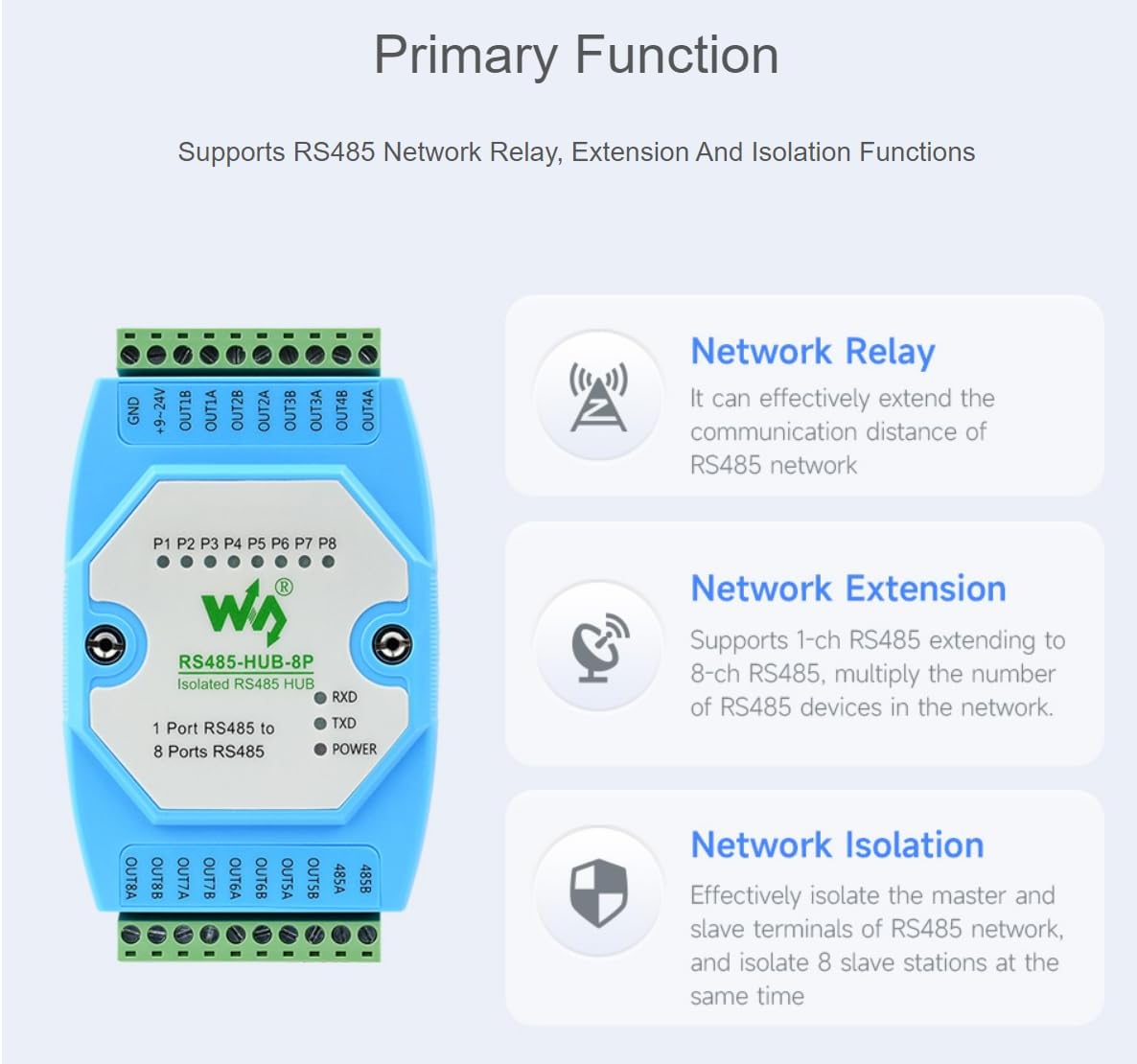

Introduction RS485-HUB-8P is an industrial grade isolated RS485 hub that can expand 8-ch RS485 slave ports through 1-ch RS485 master port and can realize relay, extension, and isolation functions of RS485 network, with screw terminal for power input. Rail-mount case design, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, and so on Specification Interface Standard: Compliant with RS485 Standard Physical Interface: RS485 Screw Terminal Baudrate: 300~460800bps (self-adaptive) Supported Nodes: Each RS485 port supports up to 32 nodes Communication Distance : 1200m (9600bps), the higher rate the shorter distance Operating Method: RS485 two-wire (A, B), half-duplex transparent transmission Power Supply: DC 9~24V Operating Temperature: -45 ~ +85℃ Environment Humidity : <95%RH Transmission Medium: Normal parallel cables/twisted-pair cables PACKAGE CONTENT RS485-HUB-8P x1

• RS485-HUB-8P is an industrial grade isolated RS485 hub
• It can expand 8-ch RS485 slave ports through 1-ch RS485 master port
• It can realize relay, extension, and isolation functions of RS485 network, with screw terminal for power input
• Rail-mount case design, easy to install, and cost-effective
• It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring ,and so on
