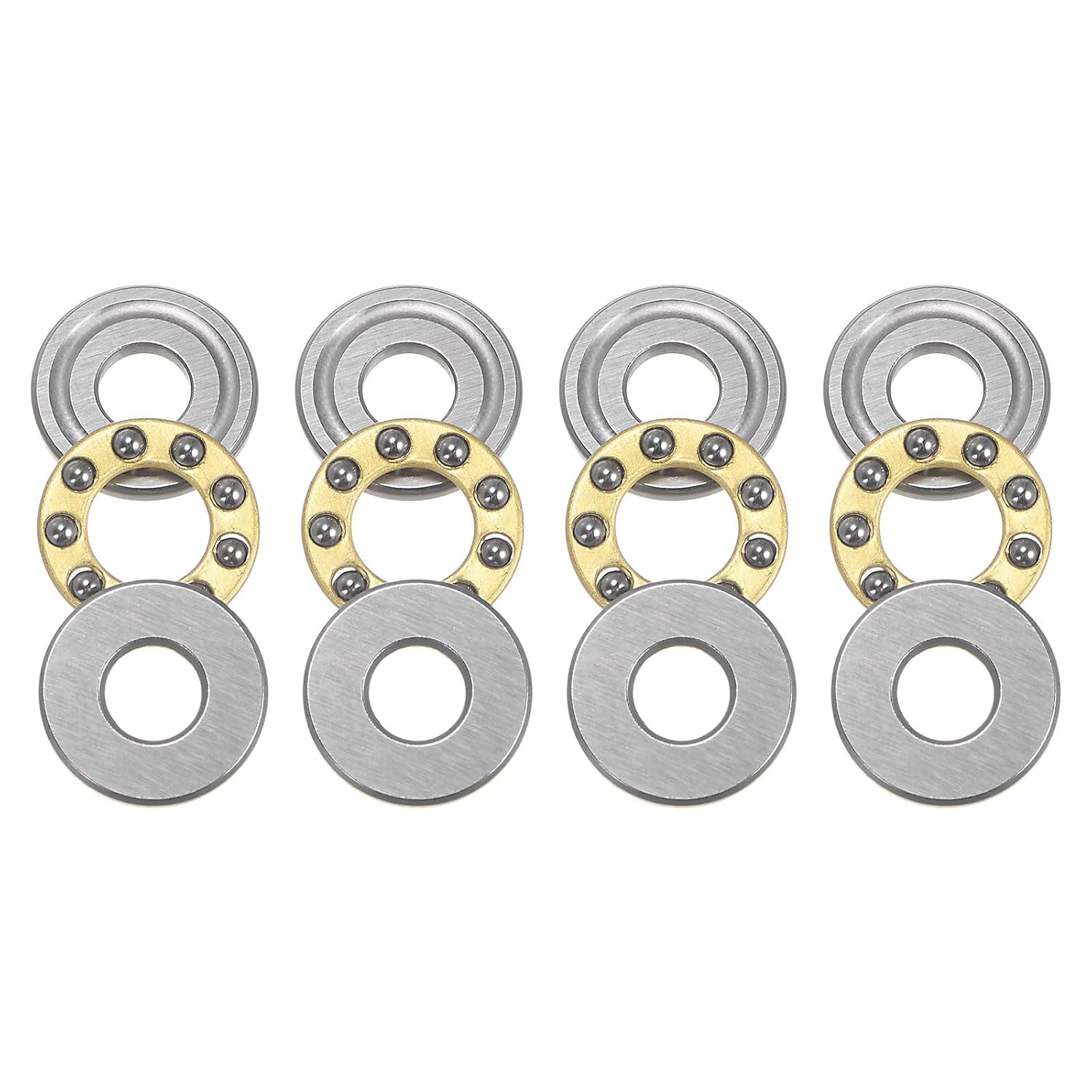

HARFINGTON 4pcs F6-12M Miniature Thrust Ball Bearings 6mm Bore 12mm OD 4.5mm Thick Chrome Steel with Washers for Conveyor Systems Machine Tools

Thrust ball bearings are designed with separable components. This feature greatly facilitates the process of mounting, dismounting, and conducting maintenance inspections.Thrust ball bearings typically consist of three main parts: a shaft washer, a housing washer, and a ball and cage assembly. These components work together to accommodate axial loads and position a shaft in one direction only. It is important to note that thrust ball bearings should not be subjected to any radial load.With their thrust ball design, these bearings efficiently handle axial loads by reducing friction and enabling smooth operation.These thrust ball bearings find their usage in various industrial settings. They are commonly used for machinery such as conveyor systems, packaging equipment, and machine tools. They provide essential support and stability for precise axial movements.To ensure optimal performance and extend bearing life, regular inspection and lubrication are recommended.

• Size - 6mm Bore, 12mm Outer Diameter, 4.5mm Thickness
• Material - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Brass cage
• Capability - Dynamic Load Rating (Cr): 1.6kN; Static Load Rating (Cor): 1.255kN; Limiting Speed (Grease): 5000rpm; Limiting Speed (Oil): 7000rpm, designed for low speed operation and axial loads only.
• Application - Can be used for conveyor systems, packaging equipment, and machine tools, such as oven turntable, jack, pump, rotating applications, machine tools, ect.
• Note - The separable components of thrust ball bearings are interchangeable. To ensure optimal performance and extend bearing life, regular inspection and lubrication are recommended.
